LA2016 USB Logic Analyzer, Full 16 Channels (2 PWM Channels) 200MHz Sampling Rate PC Software Logic Analyzer for PC Analysis on Win XP/7/8/10 Mac OS Linux Vista

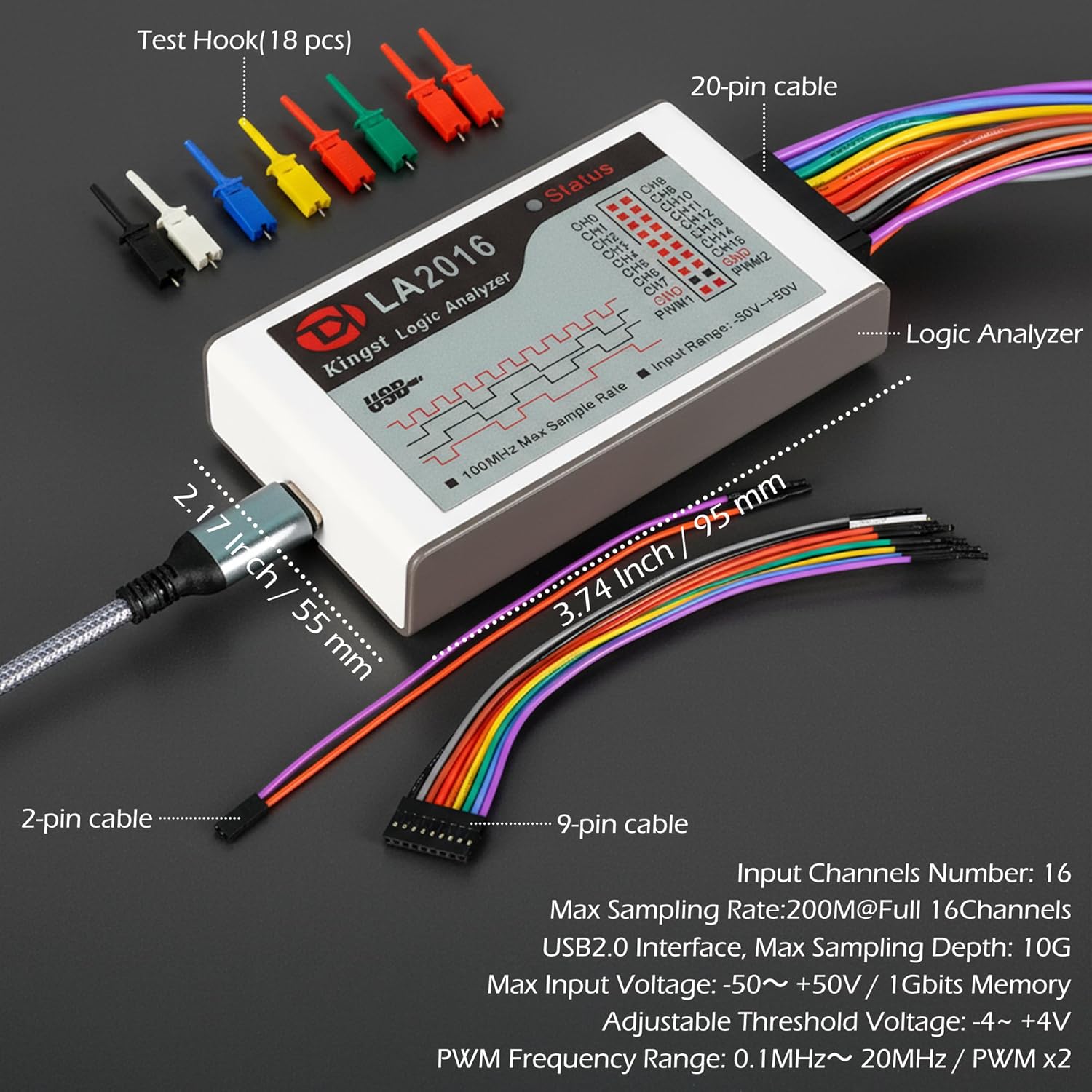

Unlock powerful digital signal analysis with the LA2016 USB Logic Analyzer. Perfect for engineers, hobbyists, and developers working on embedded systems, the LA2016 Logic Analyzer delivers accurate waveform observation and protocol decoding for a wide range of applications.Supported OS:Windows XP, Vista, Windows 7/8/10 (32bit/64bit), Mac OS, LinuxSupported Standard Protocols:UART/RS-232/485, I2C, SPI, CAN, DMX512, HDMI CEC, 12S/PCM, JTAG, LIN, Manchester, Modbus, 1-Wire, UNI/0, SDIO, SMBus, USB1.1, PS/2, NEC InfraRed, Parallel, to be updated from time to timeSPECIFICATIONModel: LA2016Channels: 16 input channels (2 PWM channels included)Sampling Rate: 200M@FULL 16CHMax. Sampling Depth: 10G, USB2.0 Interface (actual depth may be limited by the PC’s memory capacity)Adjustable Threshold: -4V to +4V, step: 0.01VInput voltage range -50V to +50VMeasuring Bandwidth: 40MMin pulse width captured: 12.5nsHardware memory size: 1GbitsHardware sampling depth: 50M/channelMax compressed depth : 10G/channelPWM Frequency Range: 0.1MHz to 20MHz, step: 10nsPWM Output Voltage: +3.3VPWM Output Impedance: 50ΩStandby Current: 150mAMax. Operating Current: 300mADimensions: 3.74*2.17*0.71in / 95*55*18mmPACKAGE1 x LA2016 Logic Analyzer3 x 9P Test Set2 x 2P Test Set20 x Test Hook Clip1 x USB-C Cable with USB-A Adapter1 x Storage Case1 x Manual

• USB Logic Analyzer can simultaneously sample up to 16 digital signals (2 dedicated PWM channels included), and supports Windows XP/Vista/7/8/10 (32/64bit), Mac OS, and Linux, ideal for complex multi-signal projects MCU, ARM, FPGA, etc
• Dual Modes: ① Normal Mode: Logic Analyzer captures detailed data with a max. sampling rate of 200MHz at all 16 channels , not limited by USB bandwidth; ② Stream Mode: the real-time sampling rate is limited by USB 2.0 interface bandwidth, and varies with PC’s memory capacity
• USB Logic Analyzer easily visualizes and decodes waveforms via advanced PC software, linked positioning allowing you to correlate waveform windows and analysis results for fast, convenient signal exploration
• Logic Analyzer supports protocols, such as UART, RS-232/485, I2C, SPI, CAN, DMX512, HDMI CEC, 12S/PCM, JTAG, LIN, Manchester, Modbus, 1-Wire, UNI/0, SDIO, SMBus, USB1.1, PS/2, NEC InfraRed, Parallel, to be updates from time to time
• Logic Analyzer features a compact, sturdy plastic shell for portability and reliability on the workbench or in the field, suitable for debugging and analysis of microcontrollers, ARM processors, and FPGA hardware, developing and troubleshooting communication protocols, and monitoring, recording, and analyzing digital signals long-term
